2005 Tiger Boxer 345cc

What was your intended objective when you started the build?

Build a solid frame, Bored (sleaved) stroked completely reworked Engine Balancing, Blueprinting, Re-Caming Porting, Polishing, Stretching/Lowering. Expanding to forward controls, changing to a foot clutch and with the use of a Jack-shaft expanding to a wide tire and using a Jockey Shift Building

What motivated you to start your project?

Since Tiger had gone Bankrupt with Government restricting Sales to Royal Thai Police Only. When Bikes were released for Auction, I Bought a Wrecked Bike with less then 4,000 Km’s on clock (Police with Truck had Backed over front end in Police Yard… Destroying Bike) I decided to expand and Build what could have been… if they had extended into the Sport/Cruiser Realm.

What was the most unique and creative thing you did to the bike?

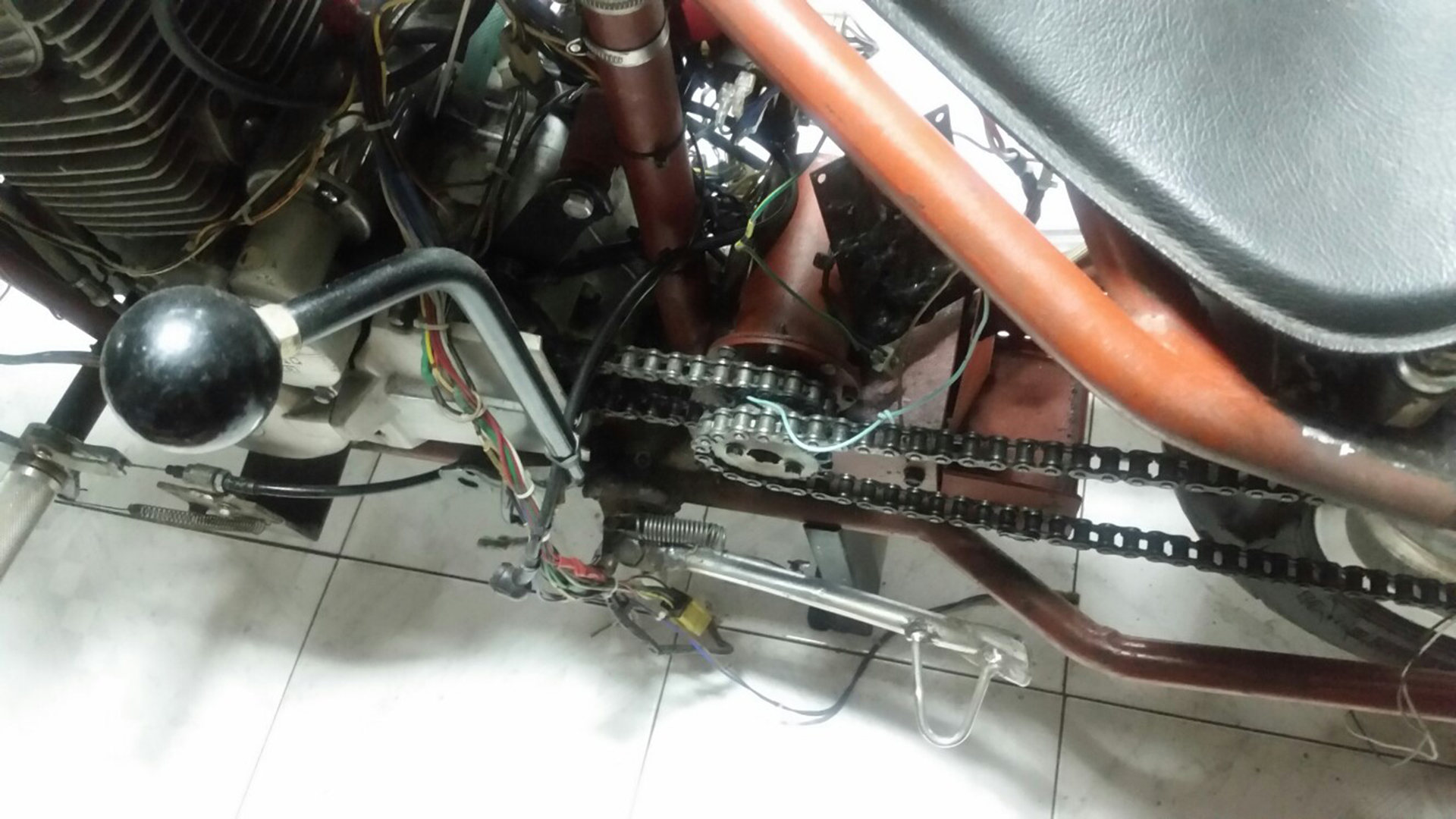

Adding the Jack Shaft I was able to add 2 gears to Final Drive gear set. Giving me 4 gears to inter change to make a Drag or Land-Speed style Chopper/Bobber. Stretching frame to a whopping 66.5″ and lowering bike to a 24″ seat height

What are you most proud of?

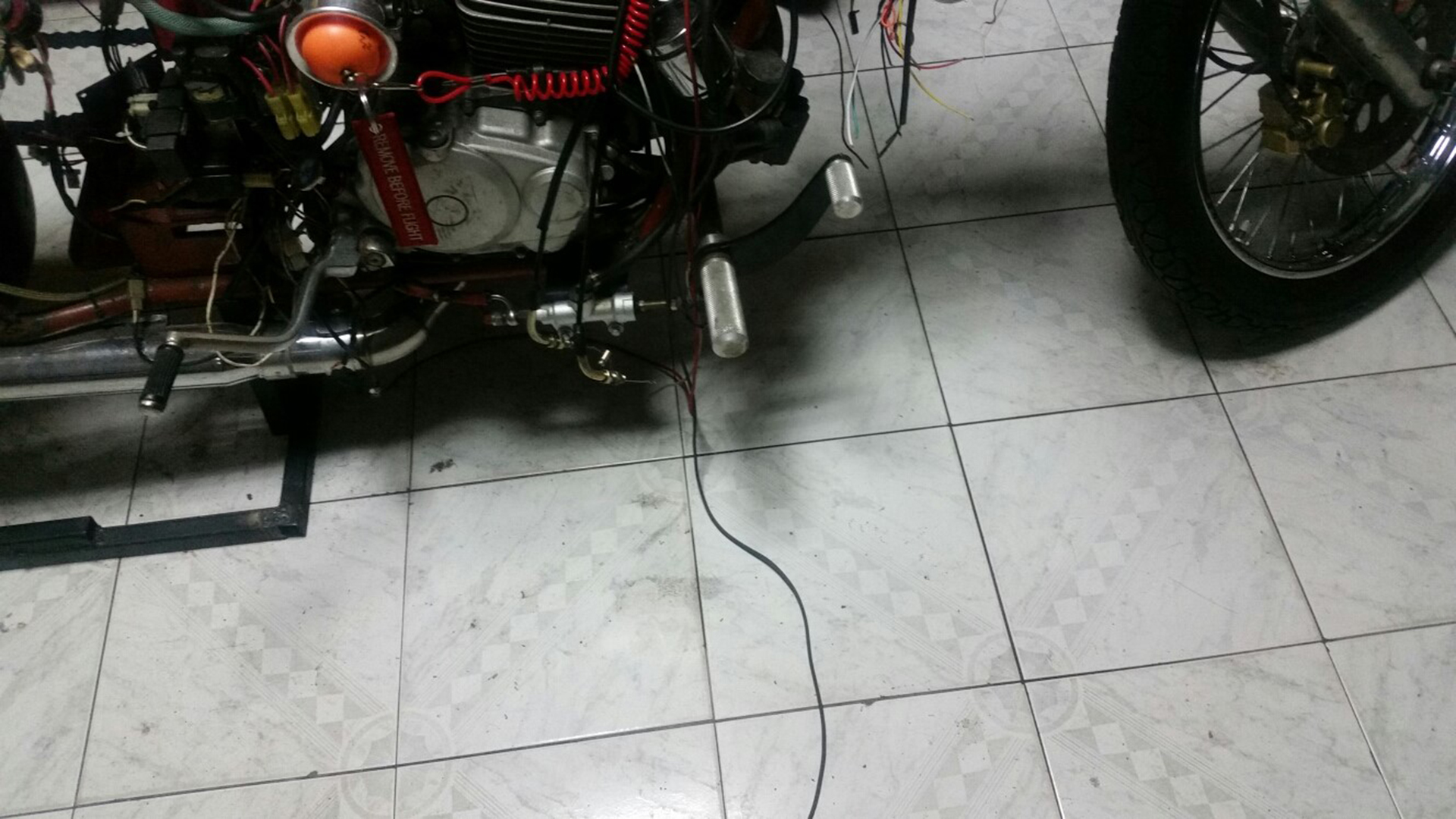

Was able to use Honda Phantom H/D front forks and go to Forward Controls. and raise Engine to 11.5 to 1 Compression. With a Complete Engine rework raise Red-Line to 9,400rpm (Tach shows 9,000 🙂 ) Raising engine Power curve to pull from 2,500 – 9,200rpm and Torque to continually pull thru 9,000rpm (H.P @ 79 and foot pound torque 198)

What do other people say about your motorcycle?

Wow! Tiger missed the Boat… Total American! Using Asian parts for the most part, when available! Amazing!! Build Me One!!

One Comment

Jay says:

January 22, 2021 at 9:40 am

Has anyone ever called the bomb sqad on this bike? I expected a pic of Keiffer Sutherland defusing it. But seriously, incredible and unique build. I like how you mounted the fender, hope you don’t mind if I borrow that for my next build.

Reply

Rate this build

- (0 ratings)

Submitted by: David S

Submit your email to win fantastic prices. This is completely optional. Visit our email submission page to enter.

Specifics

Make, Model & Year: 2005 Tiger Boxer 345cc

Fondly known as: Claw

Time spent: Going on 3 yrs now

Motorcycle cost: 4,000 Baht

Money spent: $5,500 USD

Engine: Tiger Boxer 200cc, Bored/Stroked, Sleeved-rebored. Balanced Blueprinted Re-camed, Shaved, Ported. Horsepower 79hp @8,500rpm with 198 foot pounds Torque pulling from 2,500 thru 9,000rpm

Intake: Carburetor, changed for single Cable to dual with a Tunnel (Tuned) Intake

Exhaust: Custom.. Increased sized to 2″ with 4″ Turn-down Pipes

Transmission: Tiger, 5 speed with 4 gear (Using Jack-Shaft) Final Gearing

Frame: Personal Build. Lowered to a seat height of 24″ and stretched to a wheelbase (Axle/Axle) 66.5″

Suspension: Rear – Solid Frame. Front Honda Phantom H/D Forks. Expanded rear frame/forks to 9.5″ for wide Tire Usage.

Wheels, tires and brakes: Rear tire 160/50/17 on a 17/4.5/36H wheel with additional Honda NSR Rear disc Brakes. Front tire 3.0/80/18 on a 18/1.5/36H wheel again using NSR (Honda) Disc Brakes and offsetting wheel Hub/Rim 9/16″ to match Honda Phantom Fork/Caliper Combination. Both Wheels are Spoked to match “Old School” look.

Finish – Paint: In Primer, yet to be Painted Used Harley Sportster Tank thanks to TC Bro Custom Parts, Columbus, Ohio.

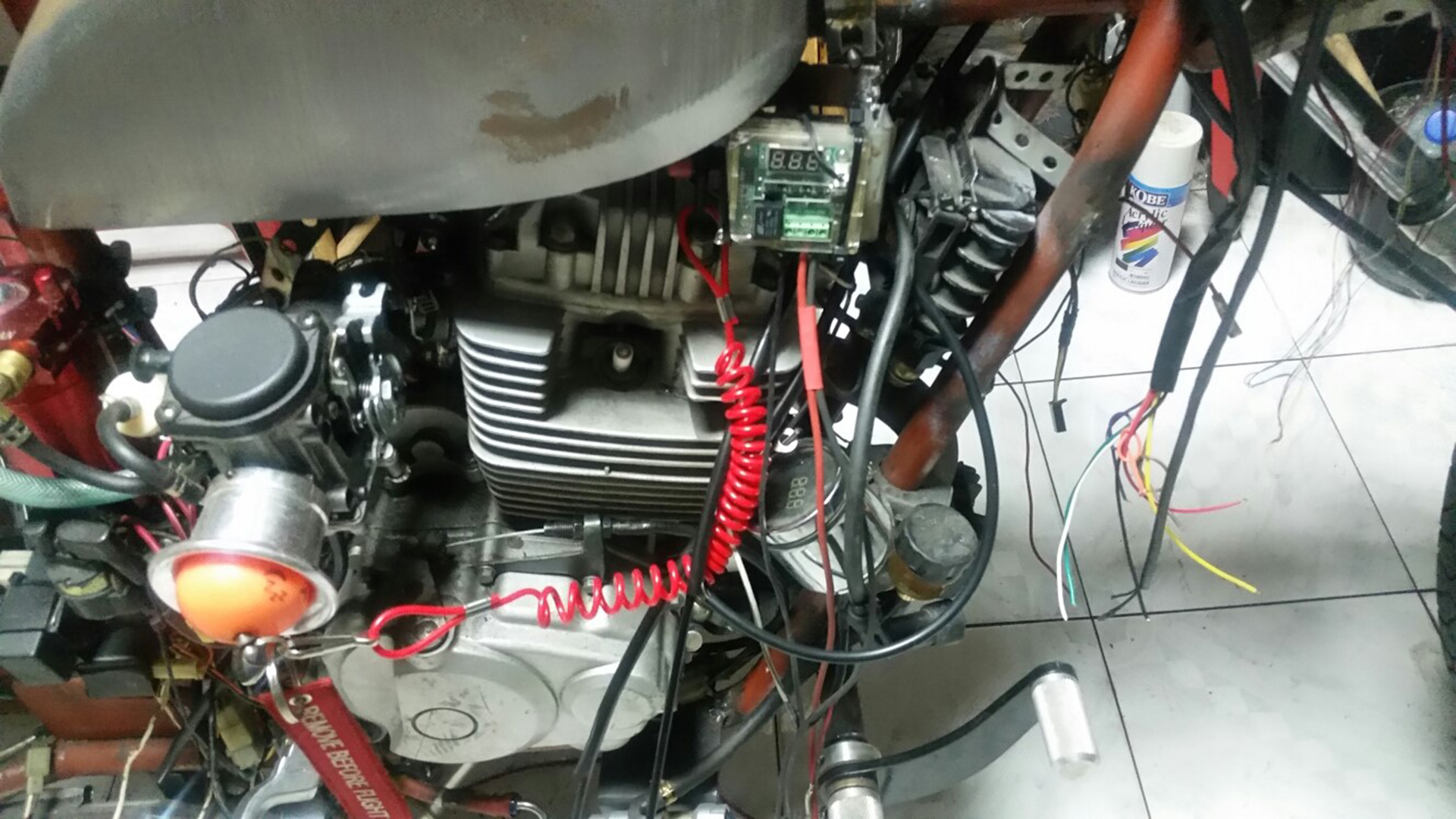

Accessories: Used Dropped Drag Bars.. Can be changed to Narrow Rabbit eared Bars if TC Bros ever decides to build in 7/8″ style. All New Controls (7/8″). Added 2.3 gallon Wassell style Low Tunnel Chopper Gas Tank. Added a digital Thermostat and dual 4″ fans to control Engine Oil Temperature to Factory Oil Cooler. All lighting is LED added Bar end turn/Running lights (White for Running / Amber for Turn signals. Rear is Combo turn/Running/Turn LED under the Fender Lights, using a Harley Bobber Style Fender. License is a Lit – Axle Side Mount again from TC Bros Custom Parts. Wiring is thru the frame, added a Second fuse for Turn and Headlights. Seat is a Custom Leather Sportster Bobber on Old-style Springs.
