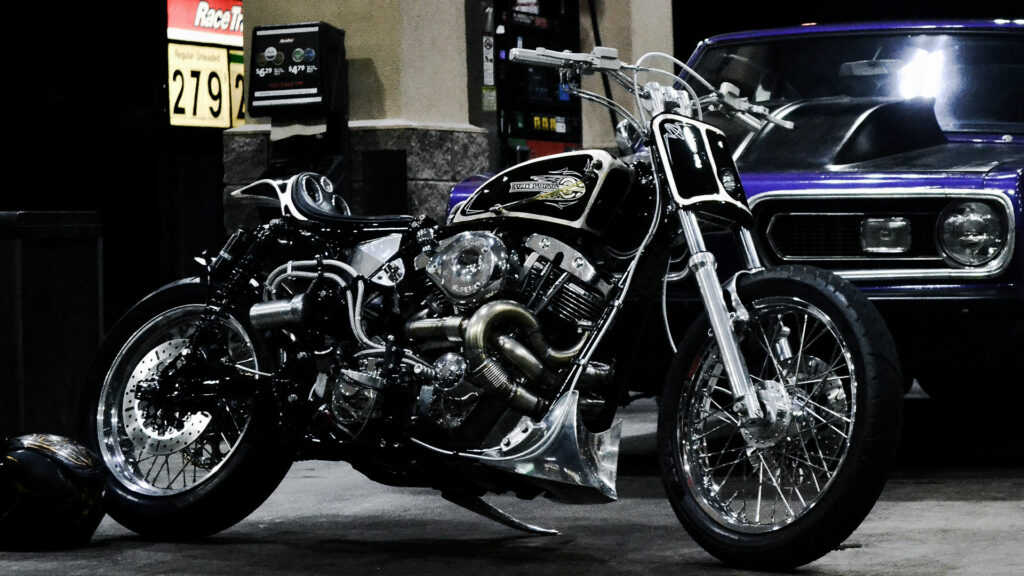

1992 Harley Davidson FXR

What was your intended objective when you started the build?

I wanted to build something like the hotrodders/chopper builders did in the 60s/70s but in an entirely new way.

What motivated you to start your project?

I always wanted to build a custom motorcycle.

What was the most unique and creative thing you did to the bike?

If I had to choose one, I altered the back half and built a detachable chromoly subframe. I also redid the suspension geometry so I can run 14.25 shocks at a lower ride height.

What are you most proud of?

The aluminum tank. I had no idea what I was doing when I started making it haha.

What do other people say about your motorcycle?

The usually notice the exhaust first.

3 Comments

Josh Ponek says:

August 19, 2018 at 6:26 pm

Rad build

Reply
[email protected] says:

October 5, 2021 at 5:25 pm

Overly cluttered, no reason for the excessive welded joints in the pipes,bad oil hose location seat height is stupid,all fucking the look of what is a good job. Ya may hate my comments ,much more could of been done to clean this bike up.

Reply
- Lynden says:

  October 5, 2021 at 5:28 pm

  So much for email not being posted.

  Reply

Rate this build

- (0 ratings)

Submitted by: Kyle R

Submit your email to win fantastic prices. This is completely optional. Visit our email submission page to enter.

Specifics

Make, Model & Year: 1992 Harley Davidson FXR

Fondly known as: Bad Company

Time spent: 400+

Motorcycle cost: 3700 for the donor engine and frame

Money spent: 9000 including the donor

Engine: 108ci shovelhead, delkron case, worked heads, 10.5:1 compression pistons. 4 3/4 stroke 3 13/16 bore.

Intake: S&S super G

Exhaust: Handmade 2″ stainless with an xpipe out the left side.

Transmission: 6 speed Ultima in a FLH case (oilpan)

Frame: 1992 FXR with a chromoly subframe.

Suspension: 14.25 ohlins rear shocks. Progressive 39mm narrowglide frontend.

Wheels, tires and brakes: 40 spoke, ebc rotors, harley late model calipers.

Finish – Paint: Painted and striped by myself.

Accessories: Handshaped aluminum tins. Isr handcontrols, boosted brad midsets, brassballs pegs, prism tail lights, trailtech headlight.
