Bluetooth Harley-Davidson Stereo - AQ-MP-5BT-H

  • Part #:
    4001201
  • Mfg Part #:
    AQ-MP-5BT-H
MSRP: $389.95

Price: $324.95 17% off!
Make sure this fits your ride
Ships Free
In Stock - 10+ on Hand

Aquatic AV Bluetooth Harley-Davidson Stereo - AQ-MP-5BT-H

The AQ-MP-5BT-H Harley-Davidson® Stereo is a high-quality, robust and durable waterproof stereo designed and built as an upgrade or replacement stereo for Harley-Davidson® Motorcycles (1998-2013 models).

  • Supports Bluetooth and MP3 devices
  • Internal device shelf
  • Fits most smartphones and media devices
  • USB device charging
  • FM/AM radio with 30 presets (US & Euro)
  • IP55 Rated, for use in any environment (dry, wet, muddy, damp etc)
  • Rotary Knob Control
  • Removable faceplate
  • Built-in 288W amplifier
  • Connect up to 8x speakers

Product Description

  • The AQ-MP-5BT-H Harley-Davidson® Stereo is a high-quality, robust and durable waterproof stereo designed and built as an upgrade or replacement stereo for Harley-Davidson® Motorcycles (1998-2013 models).
  • Plays music wirelessly via a Bluetooth enabled smartphone or MP3 device. Wired connections can also be made with stereo 3.5mm Jack or RCA inputs.
  • USB connection for charging of USB devices and devices with USB connector.
  • View track information, songs, artists and playlists on the 3″ display.
  • Control your music directly from the Harley-Davidson® handlebar controls or from the Bluetooth enabled device.
  • Uses the existing Harley-Davidson® factory stereo mounting bracket and wiring connections – simply plug and play
  • Features an onboard 288W amplifier, high-quality RCA (phono) pre-outs for connecting an external amplifier or powered subwoofer and FM/AM radio with 30x pre-set memory.

NOTE:  CVO MODELS MUST REMOVE OR REPLACE THE STOCK AMPLIFIER TO USE THIS STEREO

SPECIFICATIONS
Type: Waterproof Stereo with Bluetooth
Supported Media: Bluetooth, MP3, FM/AM radio
Detachable Faceplate: Yes
Color: Black
Device Charging: via USB
Inputs: 1x USB (charging only), 1x 3.5mm jack, 1x stereo pair RCA Aux, Bluetooth
Outputs: 1x stereo pair RCA (2V)
FM/AM Tuner: 18x FM & 12x AM Pre-set memory, switchable US/Euro frequencies
Amplifier Type: Class A/B (2 Ohm stable)
Power (max): 4x 45W (4 Ohms) / 4x 72W (2 Ohms)
Frequency Response: 20Hz – 20kHz
Operation Voltage: 9.6V – 14.4V DC
Current Draw: 6mA (standby), 7A (max)
Waterproof: Yes – IP55
Conformal PCB Coating: Yes
Fascia Material: ABS
Chassis Material ZAM coated
Certification: CE, RoHS, WEE, FCC
UV Protection: 500hrs stable
Salt/Fog Protection: 500hrs stable
Additional Features: Removable Faceplate
Bass/Treble, Balance/Fader





Included Items:

(1) Media player with wiring harness

(1) Female 4-pin connector wire

Instructions

Specifications
Part #: 4001201
Mfg #: AQ-MP-5BT-H
Function AM/FM
Function Bluetooth
Function MP3
Total Watt Output 288w
Type Stereo
Units Each
Weight 4.85 lbs
Resources & Manuals
Fitment for Aquatic AV Bluetooth Harley-Davidson Stereo - AQ-MP-5BT-H

Part 4001201 fits the following machines

Harley-Davidson
  • Electra Glide Classic - FLHTC 1998-2005, 2009-2013
  • Electra Glide Classic (EFI) - FLHTC 2007-2008
  • Electra Glide Classic Injected - FLHTC I 1998-2006
  • Electra Glide Standard - FLHT 1998-2006, 2009
  • Electra Glide Standard (EFI) - FLHT 2007-2008
  • Electra Glide Standard Injected - FLHT I 2003-2006
  • Electra Glide Ultra Classic - FLHTCU 1998-1999, 2009-2013
  • Electra Glide Ultra Classic (EFI) - FLHTCU 2007-2008
  • Electra Glide Ultra Classic Injected - FLHTCU I 1998-2006
  • Electra Glide Ultra Limited - FLHTK 2010-2013
  • Road Glide - FLTR 1998-2002, 2009
  • Road Glide (EFI) - FLTR 2007-2008
  • Road Glide Custom - FLTRX 2010-2013
  • Road Glide Injected - FLTR I 1998-2006
  • Road Glide Ultra - FLTRU 2011-2013
  • Street Glide - FLHX 2006, 2009-2013
  • Street Glide (EFI) - FLHX 2007-2008
  • Street Glide CVO/SE - FLHXSE 2010
  • Street Glide CVO/SE - FLHXSE 2 2011
  • Street Glide CVO/SE - FLHXSE 3 2012
  • Street Glide Injected - FLHX I 2006
  • Street Glide Trike - FLHXXX 2010-2011
  • Tri Glide Ultra Classic - FLHTCUTG 2009-2013
Reviews & Questions
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 38 questions Browse 38 questions and 103 answers
Can you see the display in normal situations ?
Ray on Jun 10, 2017
BEST ANSWER: Yes
how to add speakers?
A shopper on Jul 13, 2018
BEST ANSWER: I installed this unit on a 2011 ultra classic. The directions are somewhat fuzzy. The bikes wiring harness does plug into the unit with no problem. The front speakers are included in the harness. The back speakers are a different story. You will have to have a bright light and find the correct colors in the factory harness. Then cut, attach to new harness. Dont forget to insulate the end of the wires you didnt use. Its not too difficult but they should say that up front
What color is the display and can you change it?
A shopper on Jul 2, 2018
BEST ANSWER: It’s exactly what you see as advertised., But is does have a dimmer setting
Do the hand controls for volume and tuning work with this radio ?
MARK P on Jun 1, 2017
BEST ANSWER: The volume and audio controls (bass, treble, balance, fade) do work on the handle bars. I have not been able to change presets via handle bars controls. That, I do have to push the preset button on the radio. This is on an '11 HD Street Glide.
Can I use this with my iPhone?????? Hence the words CAN I
A shopper on Mar 5, 2017
BEST ANSWER: Yes it can. There is a great video on Youtube about this stereo which should answer this question and many more.
can you use a USB stick ?
A shopper on Jul 9, 2017
BEST ANSWER: No
Does this radio have a clock in it ?
TO JO on Sep 13, 2018
BEST ANSWER: I don't remember the specifics for this, but after I installed this a clock option was enabled in the odometer/code display.
Can I play the radio and still use my GPS?
Bill M on Aug 29, 2018
BEST ANSWER: If you are using a GPS app on your phone, and also playing music via your phone, the GPS app voice will override your music to tell you your directions.
Will this work without handle bar controls?
Chad C on Oct 25, 2018
BEST ANSWER: I am guessing that it will. You will just have to figure out which wires to useEnter
Does this raise any problems with the charging system?
NATHAN H on Aug 19, 2018
BEST ANSWER: Not at all I installed it two years ago works great and I have a friend who purchased one on my recommendation good deal
Will the new Samsung Galaxy S 8+ fit in the compartment?
A shopper on Jul 18, 2018
BEST ANSWER: No it, it seems to be made for iPhones, not Android's, I kinda wish there was a USB on the outside so I can charge my phone
Does the automatic volume still work?
Brian W on Apr 5, 2018
BEST ANSWER: no, if that bothers you check with biketronics website they might have a module that will work with this unit, great stereo!!!!!!
Will it hold a Galaxy S5 in compartment?
A shopper on Apr 26, 2019
BEST ANSWER: The compartment measurements are; 6 3/8 inches deep, 5 inches wide, and 1 inch tall.
Will this radio plug into my wiring harness with out splicing any wires ????
Charles H on Aug 31, 2018
BEST ANSWER: Unless you have rear speakers, it’s a straight plug and play radio.
Is this radio totally waterproof or do you still need a cover to protect from the elements?
Darla W on Aug 1, 2018
BEST ANSWER: I have not been able to try this yet to see if radio does or does not need a coveryet.Enter
Can i add extra amplifier?
A shopper on Jan 19, 2018
BEST ANSWER: Yes it is expandable, though if you buy there speakers I see no reason you would want to. I think it sounds great on my ‘13 Street Glide. The sound is amazing.
Will my headsets and the intercom on my '11 Ultra Classic still work?
D B on Aug 2, 2017
BEST ANSWER: No. They are no longer connected to the stereo system with this radio nor is the CB
Can I use with my iPhone????????????
Wayne R on Mar 5, 2017
BEST ANSWER: Yes
Will my cb/ and coms still work with this radio?
A shopper on Aug 31, 2018
BEST ANSWER: Sorry can’t answer that as my road glide does not have that capability.
I know I want this stereo but what speakers are the best with it and is an amp neccessary for full range sound...???
Eric B on May 19, 2018
BEST ANSWER: yes i feel a amp and speaker combo is necessary ,it sound s ok without but mine has a hogtunes amp and speaker upgrade and worked wonders! any brand amp speaker combo will work,hogtune, J&M,biketronics are a few that I've heard that sound good, great unit
I have a 2005 Electra Glide Ultra, and after reading many reviews I’m very confused about what ohm speakers to purchase. Some say only get 2ohm, but those say to only use with a amp. Only plan on this radio, and replacing original front speakers. Any help?
A shopper on Jul 25, 2018
BEST ANSWER: Sorry I can't answer that for you I replaced my stereo directly I left the stock speakers and everything worked perfect and sounds great eventually I want to replace the speakers with better speakers I will go with what's recommended.
are the hand controls able to control the device that is hooked to the head unit or are the buttons on the unit itself the only way to change music on connected device?
Shawn R on Jul 19, 2018
BEST ANSWER: Haandle bar controls work the radio fine. Just read the directions to properly learn how.
Why do you guys say it won’t work with a USB memory stick when it does?
A shopper on Jun 12, 2018
BEST ANSWER: I haven't had an issue with this radio. I can't really answer your direct question being that I haven't tried to use a USB flash drive on the radio yet. but i can try it this afternoon and possibly get back to you.
So it wont fit in a 1989 electra glide?
A shopper on Mar 4, 2018
BEST ANSWER: I can’t answer that question. You should call Dennis Kirk customer service they can help you with your question.
Will it work with hogtunes front speakers, no amp, jut the speakers?
A shopper on Jul 18, 2019
BEST ANSWER: Yes
Does it have a clock?
A shopper on Jun 15, 2019
BEST ANSWER: NO
Will this support my boom audio ?
A shopper on Jun 14, 2019
BEST ANSWER: https://www.denniskirk.com/dk/pdf/instructions/40/dk4001201.pdf
i have a 13 street glide with rear speakers and factory Harley amp is it still plug and play?
chuck on Apr 4, 2019
BEST ANSWER: Yes it should. Mine did.
What would you recommend for 6x9 speakers for this unit?
A shopper on Mar 23, 2019
BEST ANSWER: Any quality speakers will work.
If I use the internal amp for the front speakers, can I add an additional amp for the rear speakers?
Kenman on Jan 4, 2019
BEST ANSWER: Don't see why not
4.4 / 5.0
46 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
32
8
3
0
3
Audio Quality
4.4 / 5
Ease of Use
4.5 / 5
Mount
4.6 / 5
Quality
4.5 / 5
Value
4.5 / 5
Would you recommend this product?
Yes (44)
No (2)
Audio Quality
5 / 5
Ease of Use
5 / 5
Mount
5 / 5
Quality
5 / 5
Value
5 / 5
Would you recommend this product?
Yes
After having this sit on the workbench for about a month finally got to install it this unit sounds great. Even other people were amazed how well it sound. Currently using J&M speakers in the fairing can't wait to add more. Would definitely recommend this unit to everybody else.
September 5, 2017
Purchased
over 2 years ago
Audio Quality
5 / 5
Ease of Use
5 / 5
Mount
5 / 5
Quality
5 / 5
Value
5 / 5
Would you recommend this product?
Yes
Awesome Bluetooth, great sounds
When they said it was Plug and Play... Definitely right on the money easy install... I love it...
June 23, 2017
Purchased
over 2 years ago
Audio Quality
5 / 5
Ease of Use
5 / 5
Mount
5 / 5
Quality
5 / 5
Value
5 / 5
Would you recommend this product?
Yes
Great Upgrade
Very easy to install Bluetooth works great Great radio for the Money

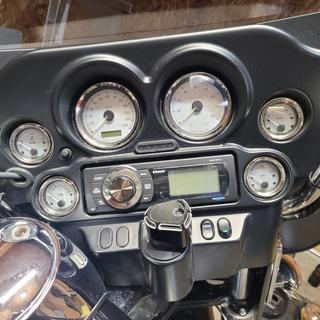

User submitted image
Added Jul 7, 2017
July 7, 2017
Purchased
over 2 years ago
Audio Quality
5 / 5
Ease of Use
4 / 5
Mount
5 / 5
Quality
5 / 5
Value
4 / 5
Would you recommend this product?
Yes
Super easy to install
Best bang for your buck good quality and easy to install...
May 28, 2017
Purchased
over 2 years ago
Audio Quality
5 / 5
Ease of Use
5 / 5
Mount
5 / 5
Quality
5 / 5
Value
5 / 5
Would you recommend this product?
Yes
So far so good very easy replacement for factory radio easy installation and everything still works on the bars
February 28, 2018
Purchased
over 2 years ago
Audio Quality
5 / 5
Ease of Use
5 / 5
Mount
3 / 5
Quality
5 / 5
Value
5 / 5
Would you recommend this product?
Yes
Other than that ridiculous Harley mounting system this radio install went smooth and easy.
Nice radio , easy install , basically plug and play.
March 26, 2018
Purchased
over 2 years ago
Audio Quality
5 / 5
Ease of Use
5 / 5
Mount
5 / 5
Quality
5 / 5
Would you recommend this product?
Yes
What a great addition
The blue tooth and the display are great easy installation.
July 31, 2017
Purchased
over 2 years ago
Audio Quality
5 / 5
Ease of Use
4 / 5
Mount
3 / 5
Quality
5 / 5
Value
5 / 5
Would you recommend this product?
Yes
Good unit, but not plug and play.
Very fast shipping. This unit was NOT plug and play. I had to cull out the rear speaker wires from the factory harness. It did come with the adaptor for these. Also a note should be included that the chrome dash trim piece should be removed for ease of installation. Insallation is extremely tight. I used a silicone spray on the seal to aid in installation. The faceplate install is very tight. It is also difficult to remove. Overall a good unit.
April 8, 2018
Purchased
1 year ago
Audio Quality
3 / 5
Ease of Use
4 / 5
Mount
3 / 5
Quality
3 / 5
Value
4 / 5
Would you recommend this product?
Yes
Not too bad for the money
Good sound not as loud as I thought it would be. Easy to use. Faceplate tough to get off.
July 31, 2017
Purchased
over 2 years ago
Audio Quality
5 / 5
Ease of Use
5 / 5
Mount
5 / 5
Quality
5 / 5
Value
5 / 5
Would you recommend this product?
Yes
Very nice product
Would highly recommend this product , much better than HK stick radio
July 10, 2017
Purchased
over 2 years ago
